NichiconJapan

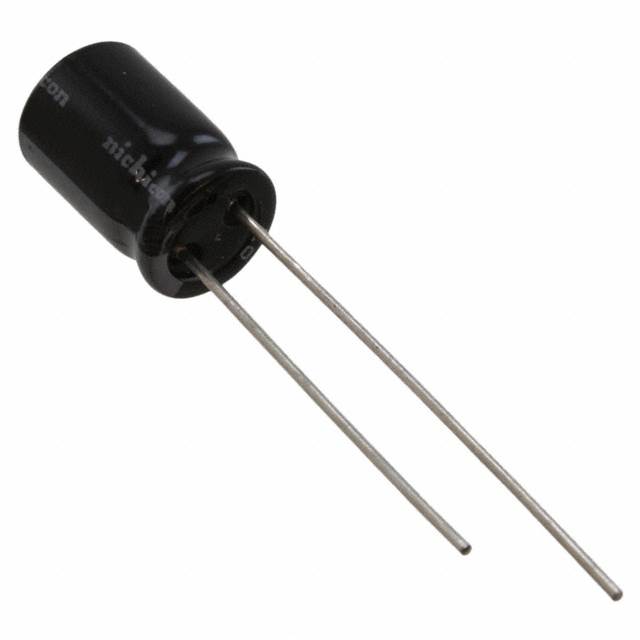

CAP ALUM 150UF 20% 10V RADIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance150 µF
Rated voltage10 V
Tolerance20 %
Lifetime2 kh85°C
| Power | |
|---|---|
| Voltage - Rated | 10 V |
| AC and DC characteristics | |
| Ripple Current @ High Frequency | 375 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Package | Cut Tape (CT) Tape & Box (TB) |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 150 µF |
| ESR (Equivalent Series Resistance) | - |
| Lead Spacing | 0.138" (3.50mm) |
| Mfr | Nichicon |
| Polarization | Polar |
| Product Status | Not For New Designs |
| Ratings | - |
| Series | UKL |
| Tolerance | ±20% |
