STMicroelectronicsSwitzerland

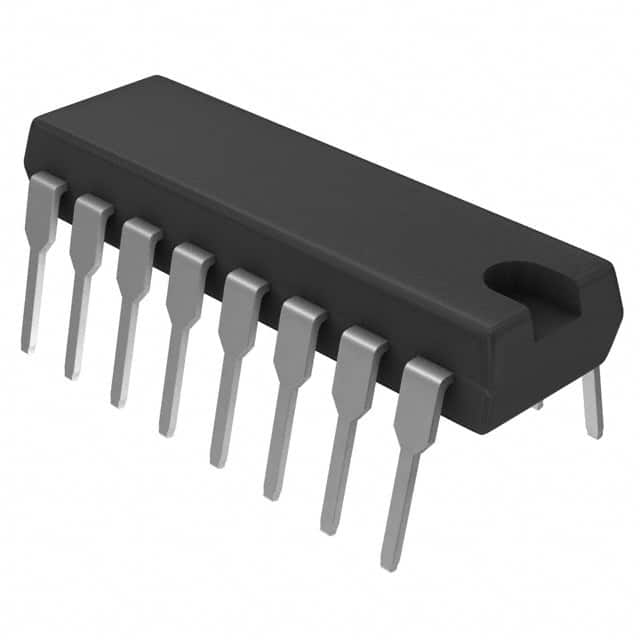

IC PWR RELAY 7NPN 1:1 16DIP
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 500mA |
| Voltage - Load | 50V (Max) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tube |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-DIP |
| Other | |
| Base Product Number | ULN2003 |
| Fault Protection | - |
| Features | - |
| Input Type | Inverting |
| Interface | Parallel |
| Mfr | STMicroelectronics |
| Number of Outputs | 7 |
| Output Configuration | Low Side |
| Output Type | NPN |
| Product Status | Active |
| Ratio - Input:Output | 1:1 |
| Rds On (Typ) | - |
| Series | ULx200xA |
| Switch Type | Relay, Solenoid Driver |
