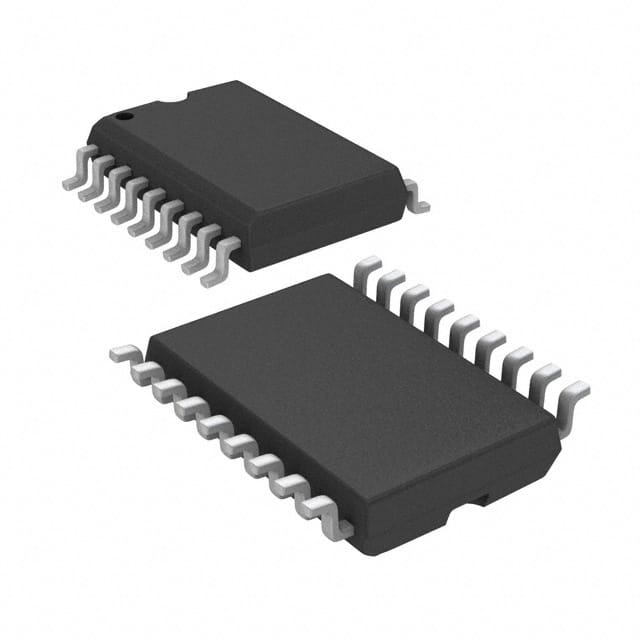

TRANS 8NPN DARL 50V 0.5A 18SOL
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | - |
| Current - Collector (Ic) (Max) | 500mA |
| Power - Max | 1.31W |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 350mA, 2V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOP |
| Other | |
| Base Product Number | ULN2803 |
| Mfr | Toshiba Semiconductor and Storage |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | 8 NPN Darlington |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500µA, 350mA |
Documents
No documents are linked to this part yet.
