Rohm SemiconductorJapan
PNP+NPN DIGITAL TRANSISTOR (WITH
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500nA (ICBO) |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 150mW |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V |
| Frequency - Transition | 250MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

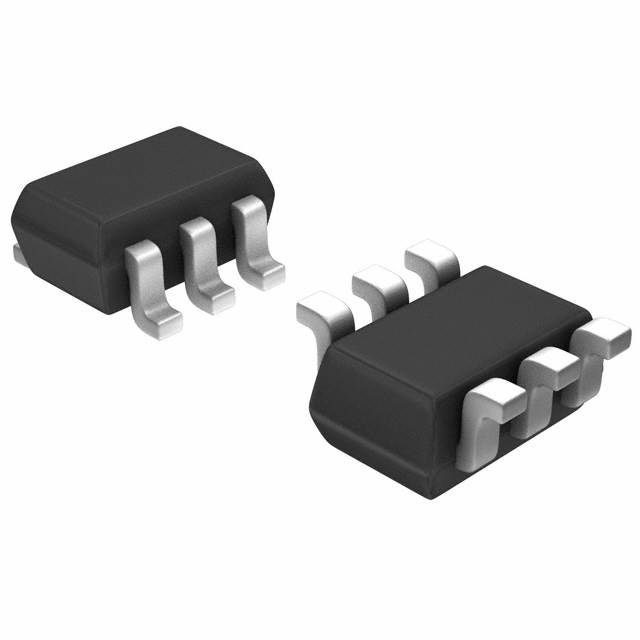

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | UMT6 |
| Other | |
| Base Product Number | UMD6 |
| Mfr | Rohm Semiconductor |
| Product Status | Active |
| Resistor - Base (R1) | 4.7kOhms |
| Resistor - Emitter Base (R2) | - |
| Series | Automotive, AEC-Q101 |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
