Mornsun America, LLCChina

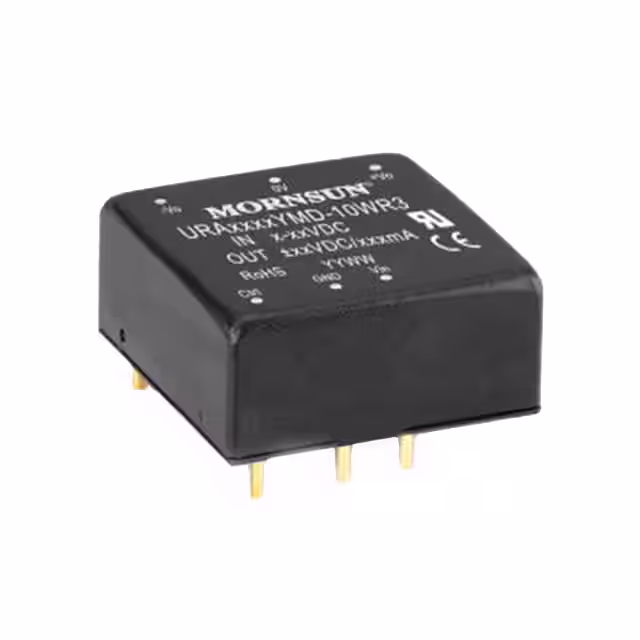

DC DC CONVERTER 24V 30W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage18 ~ 75 V
Output voltage24 V
Output current1.25 AMax
Power30 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 1.25A |
| Power (Watts) | 30 W |
| Voltage - Input (Max) | 75V |
| Voltage - Input (Min) | 18V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Base Product Number | URB4824 |
| Control Features | - |
| Efficiency | 88% |
| Features | - |
| Mfr | Mornsun America, LLC |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | URB4824YMD-30WR3 (30W) |
| Type | Isolated Module |
