Vishay General Semiconductor - Diodes DivisionUnited States

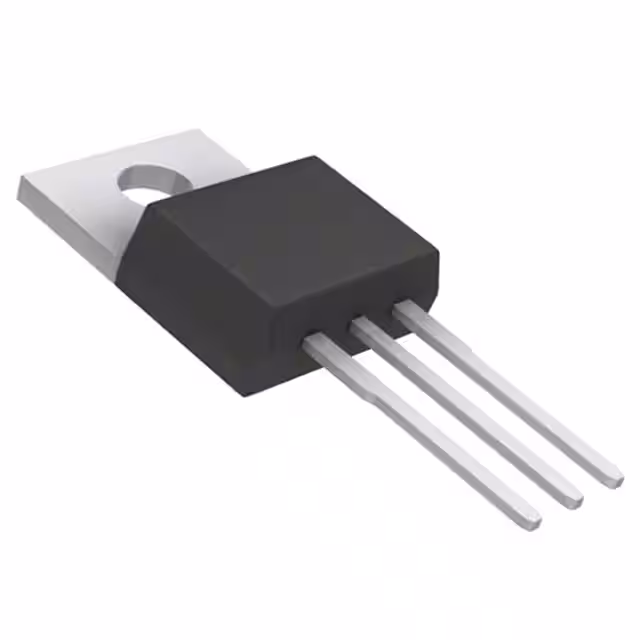

DIODE SCHOTTKY 30A 120V TO-220AB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 15A |
| Current - Reverse Leakage @ Vr | 800 µA @ 120 V |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Voltage - Forward (Vf) (Max) @ If | 970 mV @ 15 A |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -40°C~150°C |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Other | |
| Base Product Number | V30120 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Product Status | Active |
| Series | TMBS® |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
