Littelfuse Inc.United States

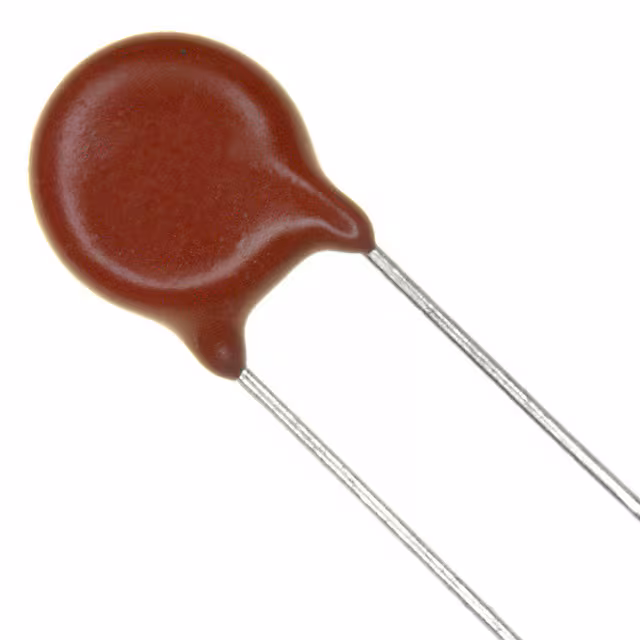

VARISTOR 33V 500A DISC 10MM
All alternatives
View full reportTechnical parameters
Key specs
Varistor voltage33 V
Max AC voltage20 VMax
Max DC voltage26 VMax
Surge current500 AMax
Energy3 JMax
| Power | |
|---|---|
| Current - Surge | 500 A |
| Varistor Voltage (Max) | 36.3 V |
| Varistor Voltage (Min) | 29.7 V |
| Varistor Voltage (Typ) | 33 V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 3495 pF @ 1 MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~85°C(TA) |
| Package | Tape & Reel (TR) |
| Package / Case | Disc 10mm |
| Other | |
| Energy | 3J |
| Maximum AC Volts | 20 V |
| Maximum DC Volts | 26 V |
| Mfr | Littelfuse Inc. |
| Number of Circuits | 1 |
| Product Status | Obsolete |
| Series | ZT |
