Littelfuse Inc.United States

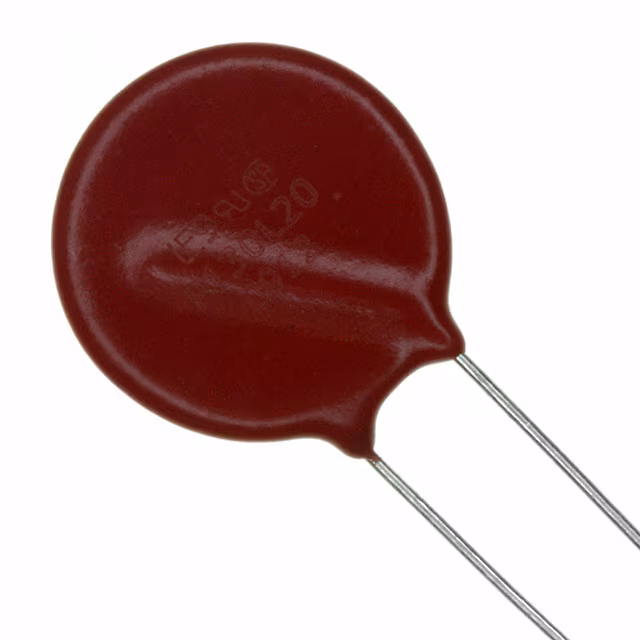

VARISTOR 680V 6.5KA DISC 14MM
All alternatives
View full reportTechnical parameters
Key specs
Varistor voltage680 V
Max AC voltage420 VMax
Surge current6.5 kAMax
Energy185 JMax
| Power | |
|---|---|
| Current - Surge | 6.5 kA |
| Varistor Voltage (Max) | 748 V |
| Varistor Voltage (Min) | 612 V |
| Varistor Voltage (Typ) | 680 V |
| AC and DC characteristics | |
| Capacitance @ Frequency | 80 pF @ 1 MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~85°C(TA) |
| Package | Bulk |
| Package / Case | Disc 14mm |
| Other | |
| Energy | 185J |
| Maximum AC Volts | 420 V |
| Mfr | Littelfuse Inc. |
| Number of Circuits | 1 |
| Product Status | Active |
| Series | C-III |
