Burr BrownUnited States

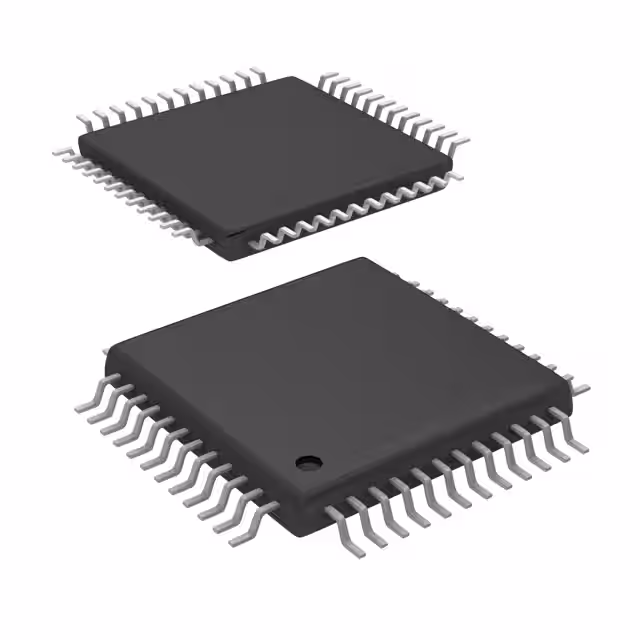

IC VARIABLE GAIN 2 CIRC 48TQFP
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage4.75 ~ 5.25 V
Gain bandwidth product80 MHzTyp
Channels2
| Power | |
|---|---|
| Current - Input Bias | 1 nA |
| Current - Output / Channel | 40 mA |
| Current - Supply | - |
| Voltage - Supply Span (Max) | 5.25 V |
| Voltage - Supply Span (Min) | 4.75 V |
| AC and DC characteristics | |
| -3db Bandwidth | 40 MHz |
| Gain Bandwidth Product | 80 MHz |
| Slew Rate | 300V/µs |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) |
| Other | |
| Amplifier Type | Variable Gain |
| Mfr | Burr Brown |
| Number of Circuits | 2 |
| Output Type | Differential |
| Product Status | Active |
| Series | - |
