Mornsun America, LLCChina

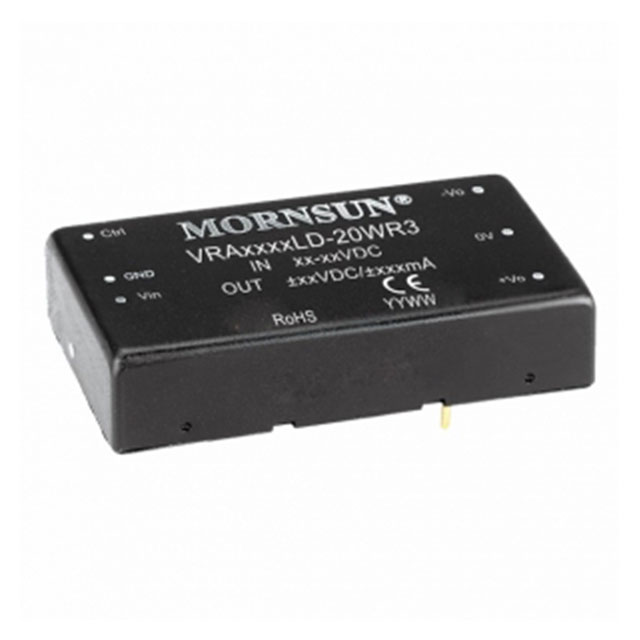

ISOLATED MODULE DC DC CONVERTER
All alternatives
View full reportTechnical parameters
Key specs
Input voltage18 ~ 36 V
Output voltage12 V
Output current1.667 AMax
Power20 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 1.667A |
| Power (Watts) | 20 W |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 18V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, UKCA |
| Base Product Number | - |
| Control Features | - |
| Efficiency | 87% |
| Features | Adjustable Output, Remote On/Off |
| Manufacturer | Mornsun America, LLC |
| Number of Outputs | 1 |
| Packaging | Tray |
| Part Status | Not For New Designs |
| Series | VRB_LD-20WR3 (20W) |
| Standard Number | 62368-1 |
| Type | Isolated Module |
Documents
No documents are linked to this part yet.
