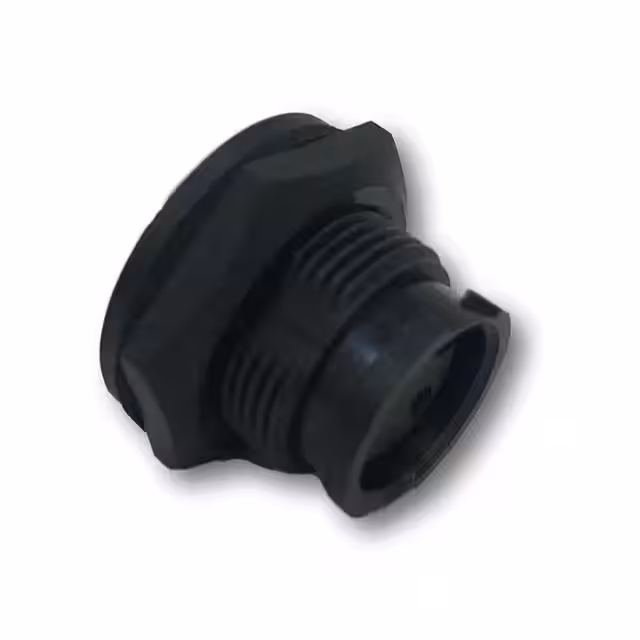

W7881-10SG-P-3ES
Conxall/SwitchcraftUnited States

W7881-10SG-P-3ES

ObsoleteCircular Connector Assemblies

CONN RCPT FMALE 10POS SOLDER

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Positions10
GenderFemale
Power
Current Rating (Amps)Varies by Wire Gauge
Voltage Rating300VAC/DC
Environment and package
Mounting FeatureBulkhead - Front Side Nut
Mounting TypePanel Mount, Through Hole
Operating Temperature-40°C~85°C
PackageBulk
Shell Size - Insert-
Shell Size, MIL-
Other
ApplicationsAutomotive, Communication Systems, Instrumentation
Backshell Material, PlatingThermoplastic
Base Product NumberW7881-10
Cable Opening-
ColorBlack
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact Finish Thickness - Mating-
Contact MaterialCopper Alloy
Fastening TypeBayonet Lock
FeaturesUV Resistant
Ingress ProtectionIP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof
Insert MaterialThermoplastic
Material Flammability Rating-
MfrConxall/Switchcraft
Number of Positions10
OrientationKeyed
Primary MaterialPlastic
Product StatusObsolete
SeriesMini-Con-X® Insta-Click™
Shell Finish-
Shell MaterialThermoplastic
ShieldingUnshielded
TerminationSolder
