Mornsun America, LLCChina

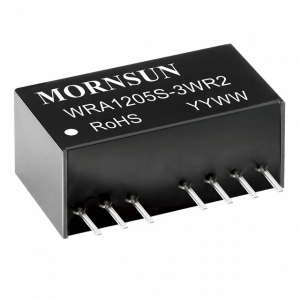

ISOLATED MODULE DC DC CONVERTER
All alternatives
View full reportTechnical parameters
Key specs
Input voltage18 ~ 36 V
Output voltage24 V
Output current125 mAMax
Power3 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 125mA |
| Power (Watts) | 3 W |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 18V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Package | Tube |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Control Features | - |
| Efficiency | 83% |
| Features | Remote On/Off |
| Mfr | Mornsun America, LLC |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | WRB_S-3WR2 (3W) |
| Standard Number | 60950-1 |
| Type | Isolated Module |
