AMD XilinxUnited States

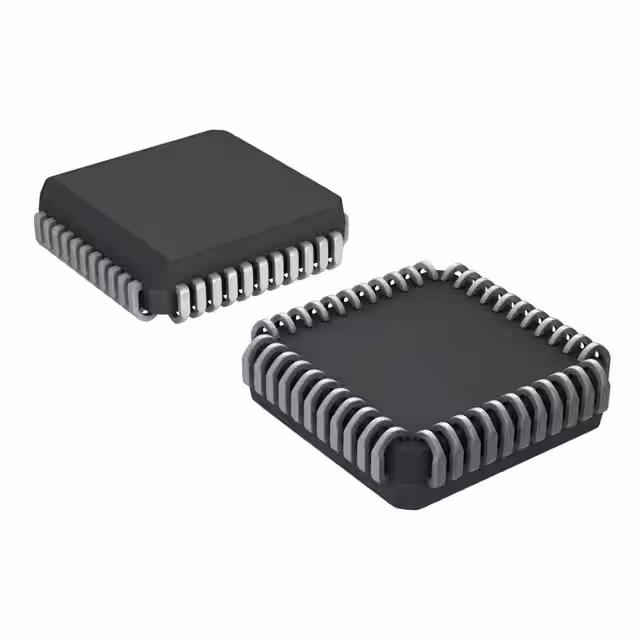

IC CPLD 72MC 10NS 44PLCC
All alternatives
View full reportTechnical parameters
Key specs
Logic elements72
I/O count34
Core voltage3 ~ 3.6 V
| Power | |
|---|---|
| Voltage Supply - Internal | 3V ~ 3.6V |
| AC and DC characteristics | |
| Delay Time tpd(1) Max | 10 ns |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tube |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Other | |
| Base Product Number | XC9572XL |
| Mfr | AMD Xilinx |
| Number of Gates | 1600 |
| Number of I/O | 34 |
| Number of Logic Elements/Blocks | 4 |
| Number of Macrocells | 72 |
| Product Status | Obsolete |
| Programmable Type | In System Programmable (min 10K program/erase cycles) |
| Series | XC9500XL |
