View full reportTechnical parameters
Key specs
Inductance1.8 µH

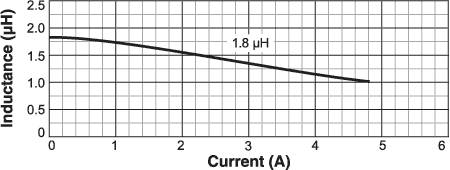

Saturation current3.3 AMax
DC resistance41.6 mΩMax
| Power | |
|---|---|
| 饱和电流 | 3.3A |
| AC and DC characteristics | |

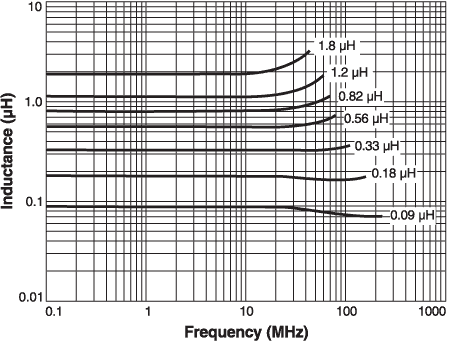

| 自谐振频率 | NMHZ |
| 自谐振频率(min) | NMHZ |
| Environment and package | |

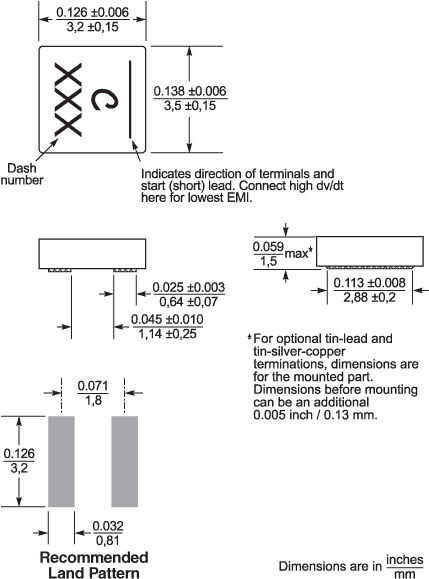

| L尺寸 | 3.65mm |
| T尺寸 | 1.5mm |
| W尺寸 | 3.35mm |
| Other | |
| 宽度 | 3.35mm |
| 电感值 | 1.8uH |
| 电感量 | 1.8uH |
| 直流电阻 | 41.6mΩ |
| 直流电阻 (max) | 41.6mΩ |
| 长度 | 3.65mm |
| 高度 | 1.5mm |
