View full reportTechnical parameters
Key specs
Inductance330 nH

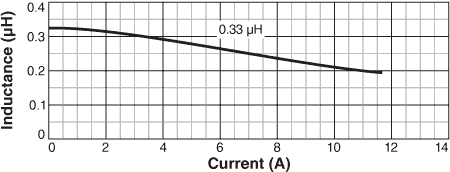

Saturation current8.7 AMax
DC resistance7.4 mΩMax
| Power | |
|---|---|
| 饱和电流 | 8.7A |
| AC and DC characteristics | |
| 自谐振频率 | NMHZ |
| 自谐振频率(min) | NMHZ |
| Environment and package | |

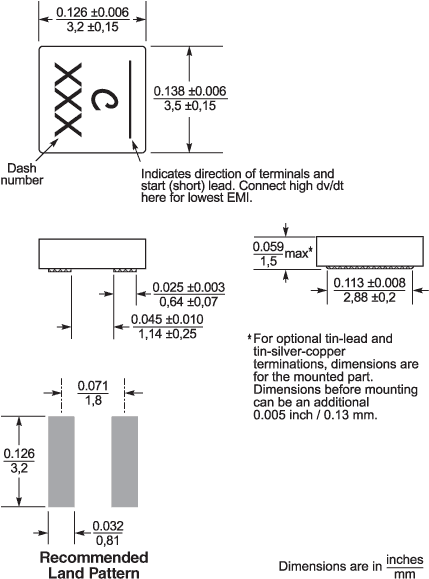

| L尺寸 | 3.65mm |
| T尺寸 | 1.5mm |
| W尺寸 | 3.35mm |
| Other | |
| 宽度 | 3.35mm |
| 电感值 | 330nH |
| 电感量 | 330nH |
| 直流电阻 | 7.4mΩ |
| 直流电阻 (max) | 7.4mΩ |
| 长度 | 3.65mm |
| 高度 | 1.5mm |
