View full reportTechnical parameters
| Power | |
|---|---|
| 供电电流 | 4mA |
| 接触放电电压 | NKV |

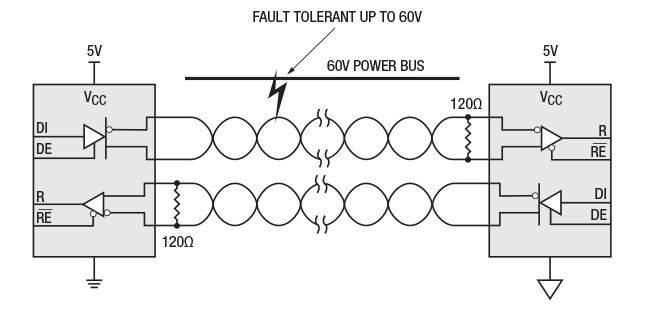

| 故障保护最大电压 | 60V |
| 故障保护最小电压 | -60V |
| 最大供电电压 | 5V |
| 最小供电电压 | 3.3V |
| 空气放电电压 | NKV |
| AC and DC characteristics | |
| 受限压摆率 | 0 |
| Environment and package | |
| 封装类型1 | NSOIC |
| 最大工作温度 | 105℃ |
| 最小工作温度 | -40℃ |
| Other | |
| HBM-ESD | 15KV |
| Rx数量 | 1 |
| Tx/Rx启用 | 0 |
| Tx数量 | 1 |
| 关断功能 | 1 |
| 失效保护电路 | 1 |

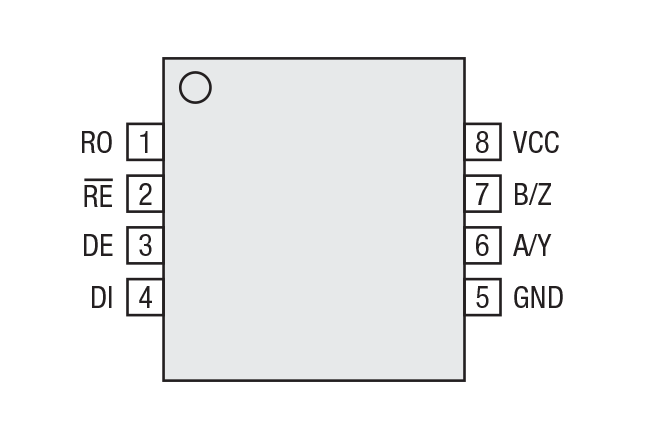

| 引脚数量1 | 8 |
| 总线上允许的设备 | 320 |
| 数据传输率 | 1Mbps |
| 热插拔保护 | 1 |
