Y1169100R000A9L
Vishay Foil Resistors (Division of Vishay Precision Group)United States

Y1169100R000A9L

ActiveChip Resistor - Surface Mount

RES SMD 100OHM 0.05% 0.6W J LEAD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Resistance100 Ω
Tolerance50 m%
Power600 mW
Temperature coefficient2 ppm/°C
Power
Power (Watts)0.6W
Environment and package
Height - Seated (Max)0.122" (3.10mm)
Operating Temperature-55°C~175°C
PackageBulk
Package / Case3017 J-Lead

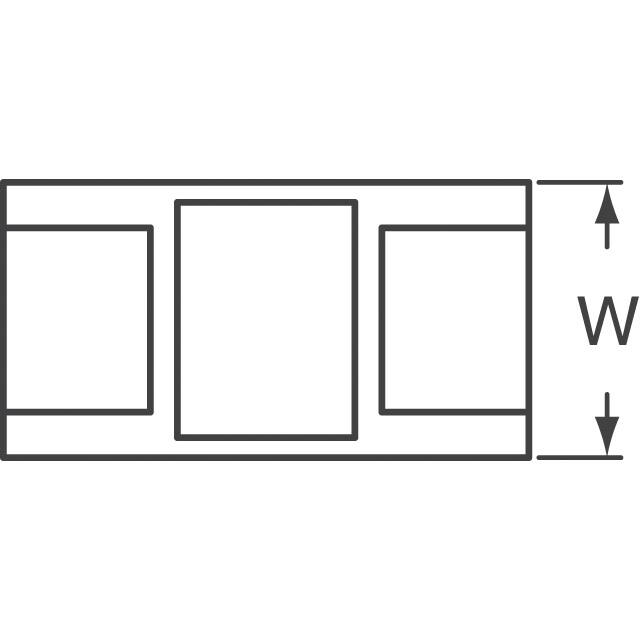

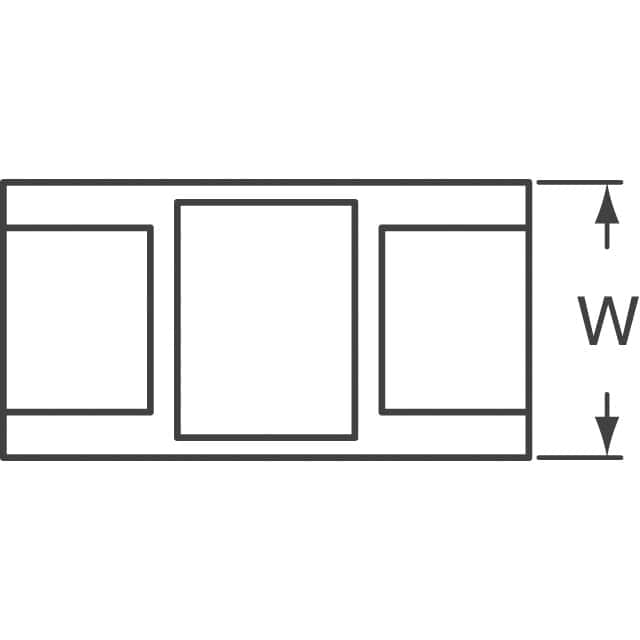

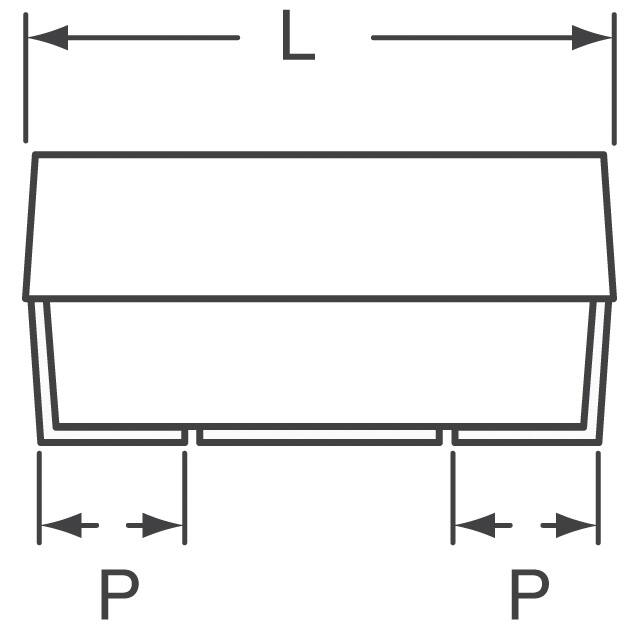

Size / Dimension0.287" L x 0.170" W (7.29mm x 4.32mm)
Supplier Device PackageSMD
Temperature Coefficient±2ppm/°C
Other
CompositionMetal Foil
Failure Rate-
FeaturesMoisture Resistant, Non-Inductive, Pulse Withstanding
MfrVishay Foil Resistors (Division of Vishay Precision Group)
Number of Terminations2
Product StatusActive
Resistance100 Ohms
SeriesSMR3D
Tolerance±0.05%

Documents

No documents are linked to this part yet.
