Y21230R50000D9L
Vishay Foil Resistors (Division of Vishay Precision Group)United States

Y21230R50000D9L

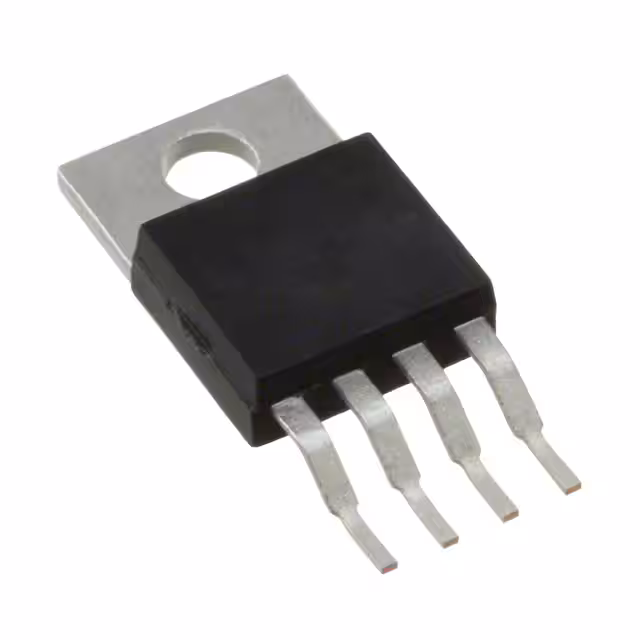

ActiveChip Resistor - Surface MountTO-220-4

RES 0.5 OHM 0.5% 8W TO220-4

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Resistance500 mΩ
Tolerance500 m%
Power8 W
Temperature coefficient200 mppm/°C
Power
Power (Watts)8W
Environment and package
Height - Seated (Max)0.158" (4.01mm)
Operating Temperature-55°C~150°C
PackageBulk
Package / CaseTO-220-4, SMD
Size / Dimension0.615" L x 0.400" W (15.62mm x 10.16mm)
Supplier Device PackageTO-220-4
Temperature Coefficient±0.2ppm/°C
Other
CompositionMetal Foil
Failure Rate-
FeaturesMoisture Resistant, Non-Inductive
MfrVishay Foil Resistors (Division of Vishay Precision Group)
Number of Terminations4
Product StatusActive
Resistance500 mOhms
SeriesVPR221SZ
Tolerance±0.5%

Documents

No documents are linked to this part yet.
