STMicroelectronicsSwitzerland

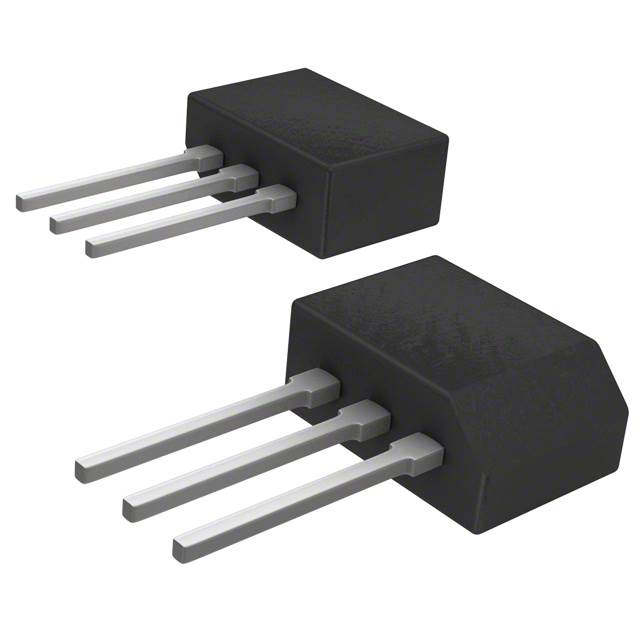

TRIAC SENS GATE 600V 4A TO202-3
All alternatives
View full reportTechnical parameters
Key specs
Off-state voltage600 V
On-state current4 AMax
Gate trigger current10 mAMax
| Power | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Hold (Ih) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A, 21A |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - Off State | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Bulk |
| Package / Case | TO-202 No Tab |
| Supplier Device Package | TO-202-3 |
| Other | |
| Base Product Number | Z0409 |
| Configuration | Single |
| Mfr | STMicroelectronics |
| Product Status | Active |
| Series | - |
| Triac Type | Logic - Sensitive Gate |
