STMicroelectronicsSwitzerland

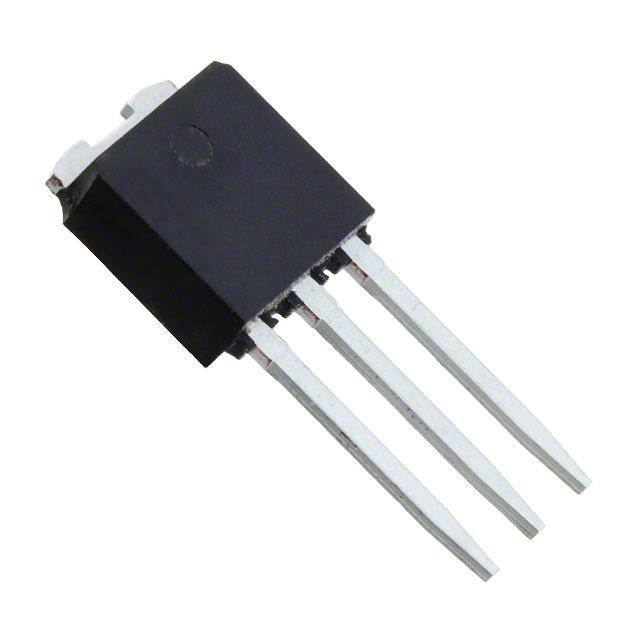

4 A TRIAC IN IPAK
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Hold (Ih) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 15A, 16A |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - Off State | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tube |
| Package / Case | TO-251-3, IPak, Short Leads |
| Supplier Device Package | I-PAK |
| Other | |
| Configuration | Single |
| Mfr | STMicroelectronics |
| Product Status | Active |
| Series | ECOPACK2 |
| Triac Type | Standard |
