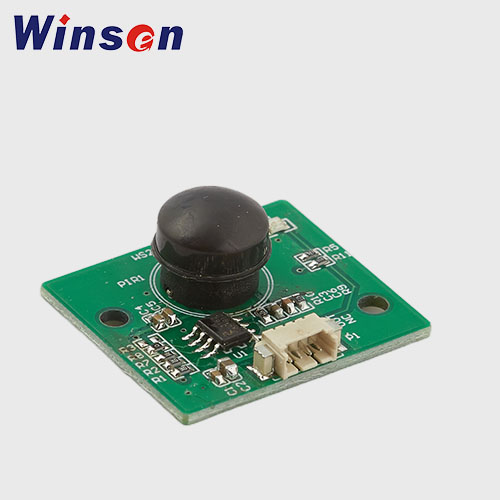

ZRD16 PIR Motion Sensor Module
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Static Current | 10µA, @3.3V @25℃ |
| Working Voltage | 3.3~12V DC |
| Environment and package | |
| Fresnel Lens Size | Diameter12.6mm |
| PCB Size | 32×28×12.3mm |
| Size | 32mm*28mm*12.3mm |
| Working Temperature | -10℃ ~ +70℃ |
| Other | |
| Blocking Time | 2S (fixed) |
| Characteristics | 1、Automatic Induction；2、Photo-resistor control；3、Induction blocking time(default setting as 2s second)；4、 High-level output |
| Detection Angle | 100°(Depend on the Lens) |
| Detection Distance | ＞2m @25℃ |
| Detection principle | pyroelectric effect |
| Level Output | High Level, 3V; Low Level, 0V |
| Model | ZRD16 |
| Receiving wavelength | 5-14um |
| Target | Induction signal |
| Trigger Mode | Repeatable |
