Diodes IncorporatedUnited States
MOSFET N/P-CH 100V 2A 8-SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 2A |
| Drain to Source Voltage (Vdss) | 100V |
| Power - Max | 1.8W |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

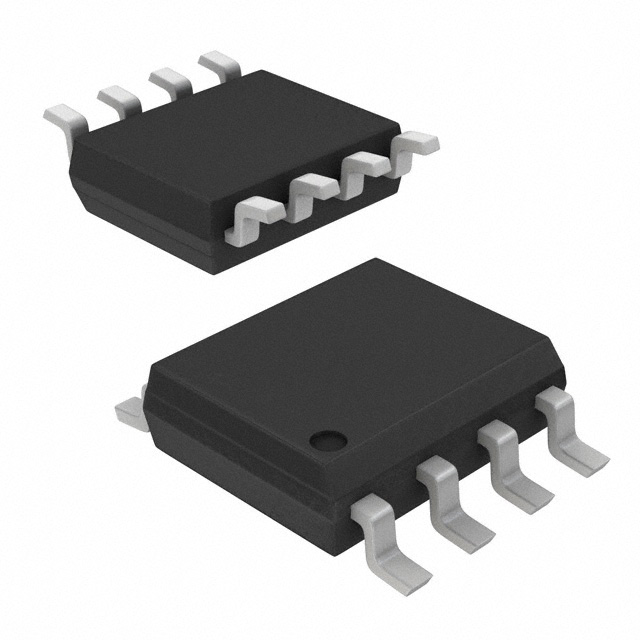

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Other | |
| Base Product Number | ZXMC10 |
| FET Feature | Logic Level Gate |
| FET Type | N and P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 9.2nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 497pF @ 50V |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 230mOhm @ 1A, 10V |
| Series | - |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
Documents
No documents are linked to this part yet.
