Diodes IncorporatedUnited States
MOSFET BVDSS: 25V~30V SO-8 T&R 0
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 6.4A (Ta), 5.4A (Ta) |
| Drain to Source Voltage (Vdss) | 30V |
| Power - Max | 1.25W (Ta) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |

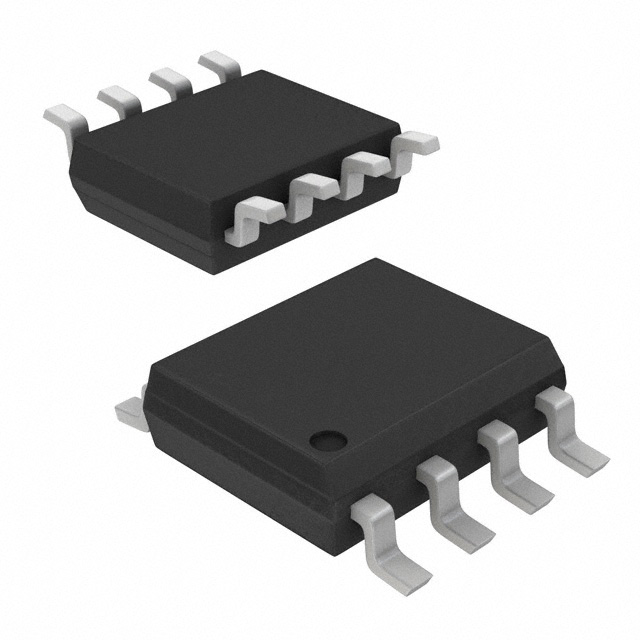

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Other | |
| FET Feature | Standard |
| FET Type | N and P-Channel Complementary |
| Gate Charge (Qg) (Max) @ Vgs | 17.5nC @ 10V, 24.9nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 796pF @ 25V, 970pF @ 15V |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 9A, 10V, 48mOhm @ 4.2A, 10V |
| Series | Automotive, AEC-Q101 |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
