Diodes IncorporatedUnited States

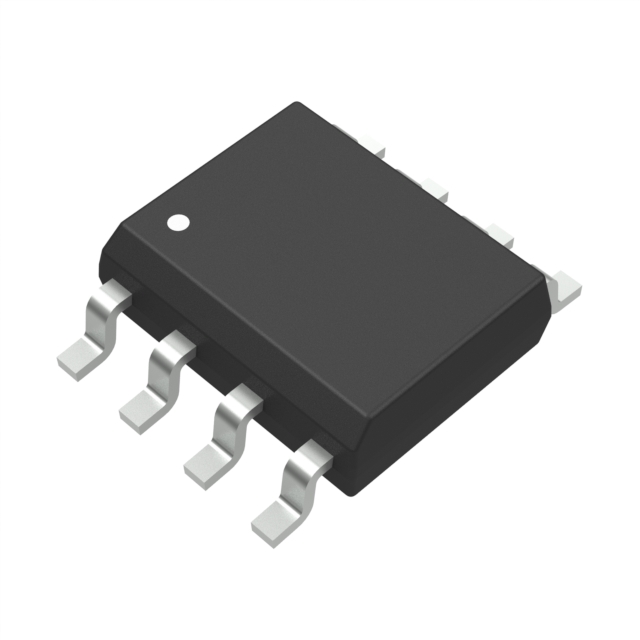

MOSFET N/P-CH 40V 5.2A/4.7A 8SO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 5.2A (Ta), 4.7A (Ta) |
| Drain to Source Voltage (Vdss) | 40V |
| Power - Max | 2.1W |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Other | |
| Base Product Number | ZXMC4A16 |
| Configuration | N and P-Channel Complementary |
| FET Feature | Logic Level Gate |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 770pF @ 40V, 1000pF @ 20V |
| Mfr | Diodes Incorporated |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 4.5A, 10V, 60mOhm @ 3.8A, 10V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 1V @ 250mA (Min) |
