Diodes IncorporatedUnited States

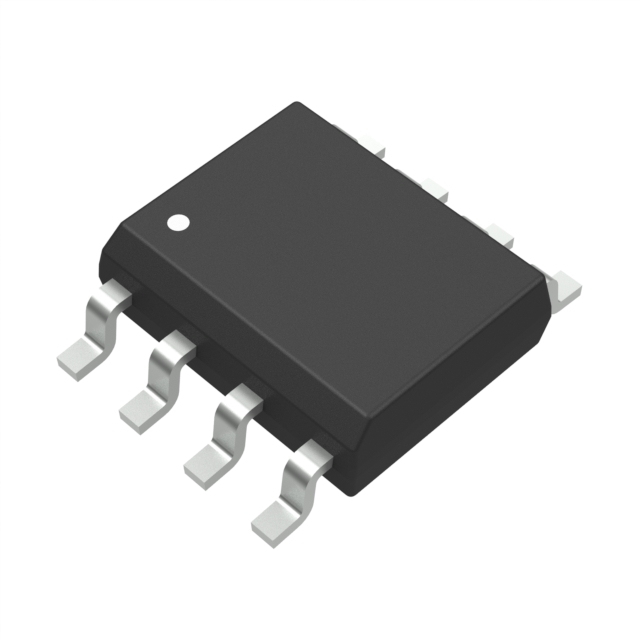

MOSFET 2P-CH 60V 3.9A 8SO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 3.9A (Ta) |
| Drain to Source Voltage (Vdss) | 60V |
| Power - Max | 2.15W |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Qualification | AEC-Q101 |
| Supplier Device Package | 8-SO |
| Other | |
| Base Product Number | ZXMP6A16 |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | - |
| Gate Charge (Qg) (Max) @ Vgs | 12.1nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1021pF @ 30V |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 2.9A, 10V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
