Diodes IncorporatedUnited States

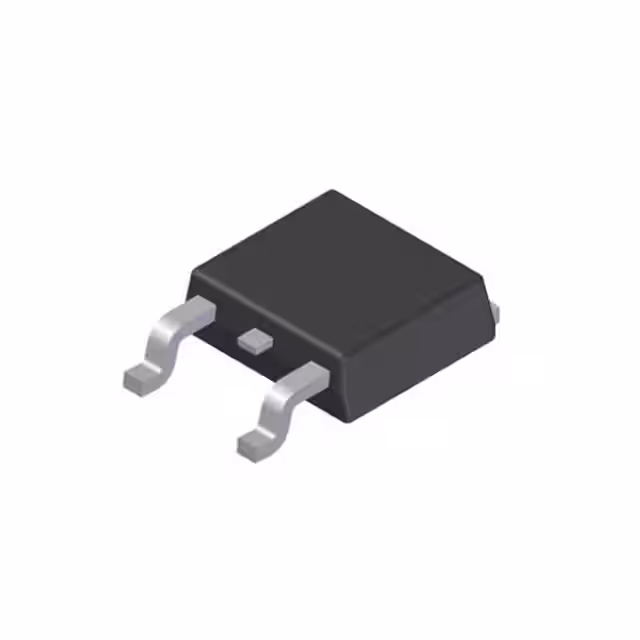

MOSFET P-CH 70V 3.8A TO252-3
All alternatives
View full reportTechnical parameters
Key specs
ChannelP-channel
Drain-source voltage70 V
Continuous drain current3.8 A
On-resistance160 mΩMax · 2.1A
Gate threshold voltage1 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 3.8A (Ta) |
| Drain to Source Voltage (Vdss) | 70 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Power Dissipation (Max) | 2.11W (Ta) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| Other | |
| Base Product Number | ZXMP7A17 |
| FET Feature | - |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 635 pF @ 40 V |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 2.1A, 10V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
