Diodes IncorporatedUnited States

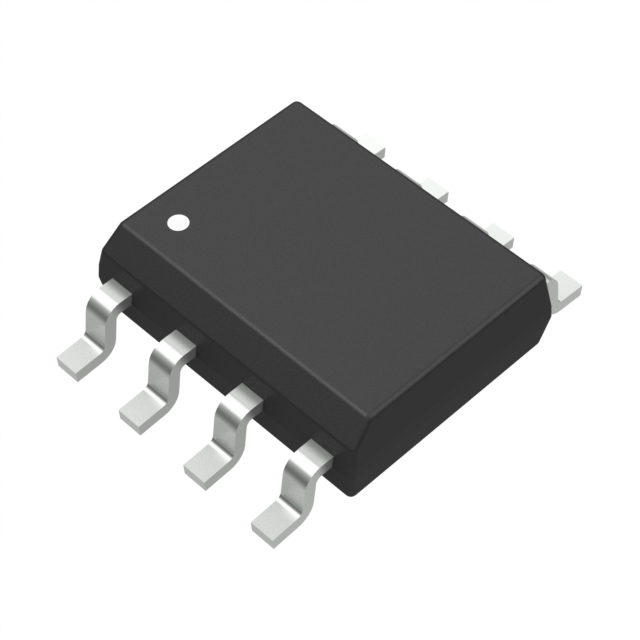

IC REG CTRLR BOOST 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
TopologyBoost
Outputs1
Input voltage980 mV ~ 3.5 V
Switching frequency200 kHz
| Power | |
|---|---|
| Voltage - Supply (Vcc/Vdd) | 0.98V ~ 3.5V |
| AC and DC characteristics | |
| Frequency - Switching | 200kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Package | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Other | |
| Base Product Number | ZXSC100 |
| Clock Sync | No |
| Control Features | - |
| Duty Cycle (Max) | - |
| Function | Step-Up |
| Mfr | Diodes Incorporated |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Product Status | Obsolete |
| Serial Interfaces | - |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Boost |
