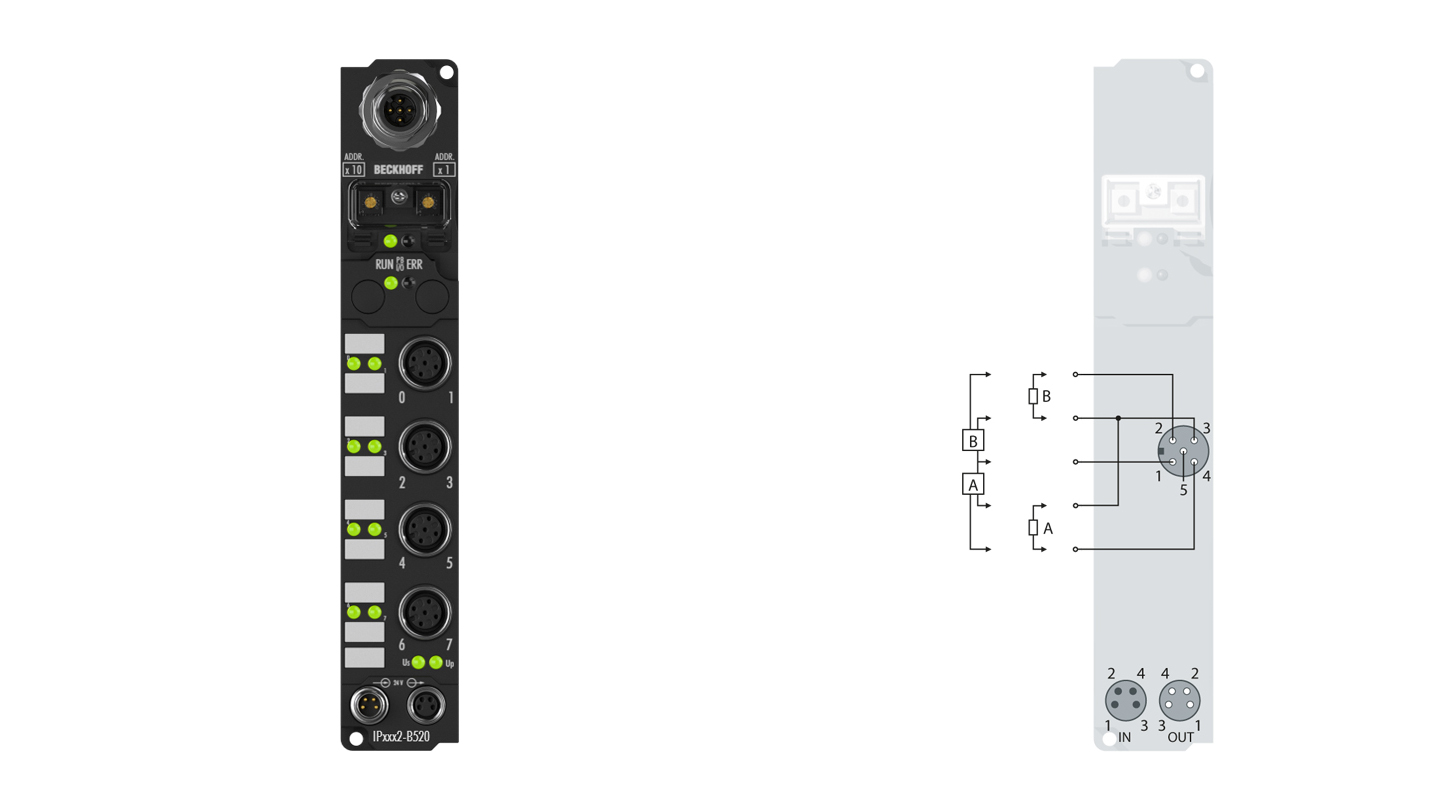

ip2002-b520
ActiveThe IP2002-Bxxx digital output connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs...
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Auxiliary power current | typ. 20 mA per channel |
| Box supply current | 45 mA + current consumption of sensors, max. 0.5 A |
| Current consumption from U S (without sensor current) | see documentation |
| Max. output current | max. 0.5 A per channel, individually short-circuit proof |
| Nominal output voltage | 24 V DC (-15%/+20%) |
| Power supply | control voltage: 24 V DC (-15%/+20%); load voltage: according to I/O type |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Short-circuit current | typ. 1.5 A |
| Environment and package | |
| China-RoHS | www.beckhoff.com/china-rohs-io |
| Dimensions (W x H x D) | 30 mm x 175 mm x 26.5 mm |
| Operating temperature | 0…55°C |
| REACH Annex XIV | compliant |
| REACH Annex XVII | compliant |
| REACH SVHC | Lead, Octamethylcyclotetrasiloxane, Triphenyl phosphate |
| RoHS | compliant with exemption |
| RoHS exemption | 6c: Copper alloy with a mass fraction of up to 4% lead, 7c-I: Lead-containing electrical and electronic components in glass and ceramic materials, excluding dielectric ceramics in capacitors |
| Storage temperature | -25…+85°C |
| Other | |
| Analog peripheral signals | according to I/O type |
| Approvals/markings | CE, UL |
| Bit width in the process image | 8 outputs |
| Bus interface | 1 x M12 plug, 5-pin |
| CA Prop65 | www.beckhoff.com/prop65 |
| CAS No. | 7439-92-1, 556-67-2, 115-86-6 |
| Configuration | via KS2000 or the controller (explicit messaging) |
| Digital peripheral signals | according to I/O type |
| Disclaimer | This statement and the information contained above are, to the best of our knowledge and belief, accurate, based on the information we have received from our suppliers. This information is in line with the current standard of technology and our suppliers’ technical documentation. The absence of the substances is not verified by Beckhoff Automation by means of analytical tests. When addressed to our customers any information contained in this document is subject to the terms and conditions expressed in the governing customer agreement. Our general terms and conditions apply. |
| Distance between stations | 500 m 250 m 100 m |
| Electrical isolation | channels/control voltage: no, between the channels: no, control voltage/fieldbus: depends on the bus system |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Extension modules | – |
| Housing data | Standard housing |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Load type | ohmic, inductive, lamp load |
| Material | PA6 (polyamide) |
| Material compliance | IP2002-B520 |
| Number of outputs | 8 |
| Operating modes | bit strobe, polling, cyclic, change of state (COS) |
| Output connections | M12, screw type |
| POP | compliant |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| SCIP No. | SCIP submission in progress |
| Technical data | IP2002-B520 |
| Technical data digital outputs | IP2002-Bxxx |
| Transmission medium | shielded copper cable, with power supply, typ. 2 x 2 x 0.25 mm² |
| Transmission rate | automatic detection up to 500 kbaud |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| ZB8801-0000 | torque wrench for hexagonal plugs, adjustable |
| ZB8801-0001 | torque cable key, M8/wrench size 9, for ZB8801-0000 |
| ZB8801-0002 | torque cable key, M12/wrench size 13, for ZB8801-0000 |
| ZK1020-0101-0xxx | pre-assembled IP-Link cable, drag-chain suitable |
| ZK2000-6100-0xxx | M12, plug, straight, male, 4-pin, A-coded – open end |
| ZK2000-6162-0xxx | M12, plug, straight, male, 4-pin, A-coded – M12, socket, straight, female, 4-pin, A-coded |
| ZK2020-3132-0xxx | M8, plug, straight, male, 4-pin – M8, socket, straight, female, 4-pin |
| ZK2020-3200-0xxx | M8, socket, straight, female, 4-pin – open end |
| ZS1020-0010 | IP-Link plug, 1 piece, plug for IP-Link system |
| ZS2000-2310 | Plug field assembly, Sensor and Power, IP65/67, M8, straight, male, 4-pin, A-coded, 0.14…0.5 mm², Ø 4…5.5 mm |
| ZS2000-2320 | Socket field assembly, Sensor and Power, IP65/67, M8, straight, female, 4-pin, A-coded, 0.14…0.5 mm², Ø 4…5.5 mm |
| ZS2000-2610 | Plug field assembly, Sensor, IP65/67, M12, straight, male, 4-pin, A-coded, 0.14…1.5 mm², Ø 4…8 mm |
| ZS2000-2710 | Plug field assembly, Sensor, IP65/67, M12, straight, male, 5-pin, A-coded, 0.25…1.5 mm², Ø 4…8 mm |
| ZS5000-0014 | blanking plug, plastic (IP65/67), for M8 socket, green, packaging unit = 50 pieces |
| ZS5000-0020 | blanking plug, plastic (IP67), for M12 socket, packaging unit = 50 pieces |
| ZS5300-0011 | Mounting plate for 14 small or 7 wide EtherCAT-/ EtherCAT P box modules, stainless steel, 500 mm x 130 mm x 1.5 mm |
