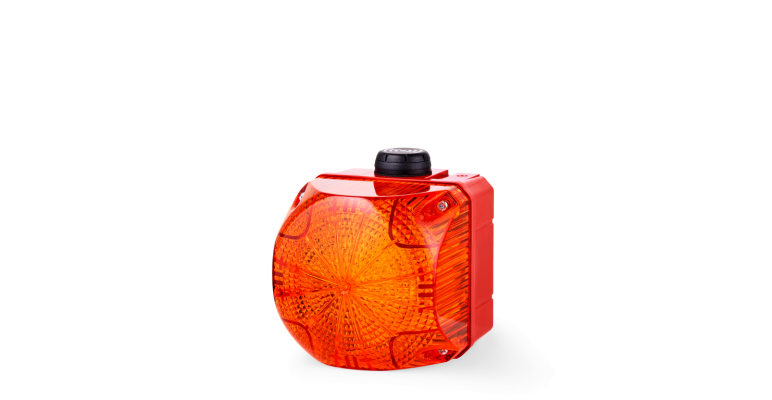

qss-led-steady-flashing-beacon-with-buzzer-indicator
ActiveExplore Auer Signal's portfolio of signaling devices: ✓ light beacons ✓ surface mounted lights ✓ panel indicator lights ✓ audible devices ✓ tower lights
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Strobe/flash frequency | 1,4 Hz |
| Tone frequency | 3.500 Hz |
| Environment and package | |
| Operating temperature | -30 °C / +60 °C |
| Type of mounting | horizontal, vertical or any |
| Other | |
| Beacon type | Steady beacon or Flashing beacon |
| Connection technology | Screw/plug-in terminal up to 2,5 mm² |
| Degree of protection | IP65 |
| Duty cycle | 100 % |
| Housing | 94 mm (square), Polycarbonate, UV stabilized red, piezo buzzer black |
| Impact resistance | IK07 |
| Lens | Polycarbonate, ribbed inside |
| Light source | 16 LEDs |
| Luminous intensity | 30 Cd |
| Product standard | EN60947-5-1:2004 + A1:2009 |
| Service life | Light source: 50.000 h |
| Tone | 2 Tones, 2 Tones can be switched externally, Steady tone or Pulsing tone |
| Volume | 80 dB |
| Weight | 300 g |
