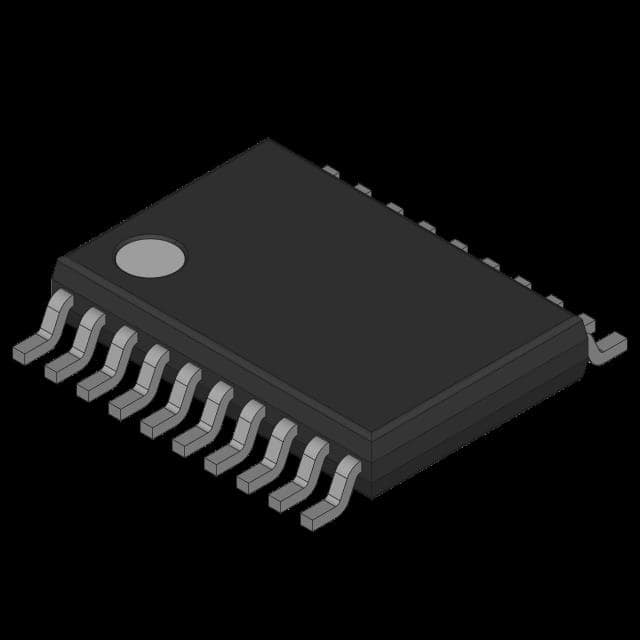

IC SYNTHESIZER DUAL 5GHZ 20TSSOP
All alternatives
View full reportTechnical parameters
Key specs
Max frequency5 GHzMax
Outputs3
Supply voltage2.25 ~ 2.75 V
| Power | |
|---|---|
| Voltage - Supply | 2.25V ~ 2.75V |
| AC and DC characteristics | |
| Frequency - Max | 5GHz, 2.5GHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Other | |
| Base Product Number | LMX2434 |
| Differential - Input:Output | Yes/No |
| Divider/Multiplier | No/No |
| Input | CMOS |
| Mfr | Texas Instruments |
| Number of Circuits | 1 |
| Output | CMOS |
| PLL | Yes with Bypass |
| Product Status | Active |
| Ratio - Input:Output | 3:2 |
| Series | PLLatinum™ |
| Type | PLL Frequency Synthesizer |
