WeidmüllerГермания

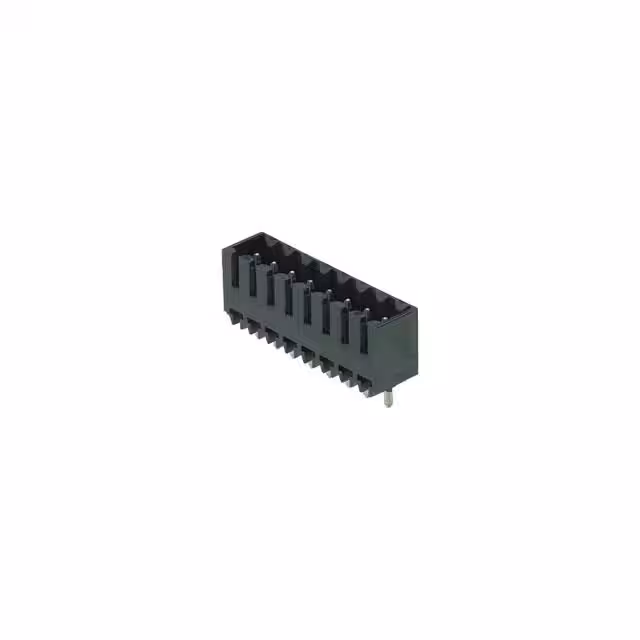

TERM BLOCK HDR 14POS VERT 3.5MM
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Число контактов14
Шаг3.5 mm
| Питание | |
|---|---|
| Current - IEC | 15A |
| Current - UL | 10 A |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
| Условия эксплуатации и корпус | |
| Insulation Height | 0.435" (11.05mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C~100°C |
| Package | Bulk |
| Screw Size | - |
| Другое | |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.059" (1.50mm) |
| Features | - |
| Header Orientation | Vertical |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Ingress Protection | IP10 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 14 |
| Pitch | 0.138" (3.50mm) |
| Plug Wire Entry | - |
| Positions Per Level | 14 |
| Product Status | Active |
| Series | Omnimate SL |
| Termination Style | Solder |
| Torque - Screw | - |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Wire Strip Length | - |
