ebm-papst Inc.Германия

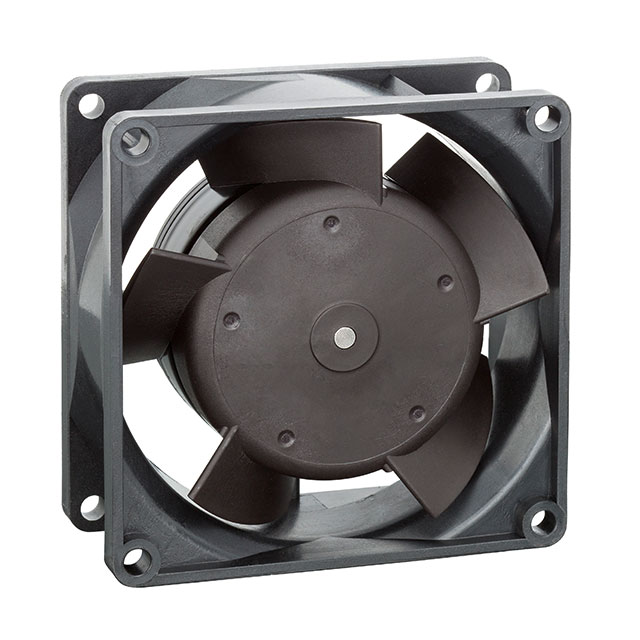

FAN AXIAL 80X32MM 12VDC WIRE
Все аналоги
Полный отчётТехнические параметры
| Питание | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 2.2 W |
| Voltage Range | 6 ~ 15VDC |
| Voltage - Rated | 12VDC |
| Характеристики по постоянному и переменному току | |
| Noise | 36.0dB(A) |
| Условия эксплуатации и корпус | |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Package | Bulk |
| Size / Dimension | Square - 80mm L x 80mm H |
| Другое | |
| Air Flow | 31.8 CFM (0.890m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 3300 RPM |
| Series | 8300 |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 0.375 lb (170.1 g) |
| Width | 32.00mm |
